USB Iambic Morse Keyboard closeup


USB Iambic Morse Keyboard closeup

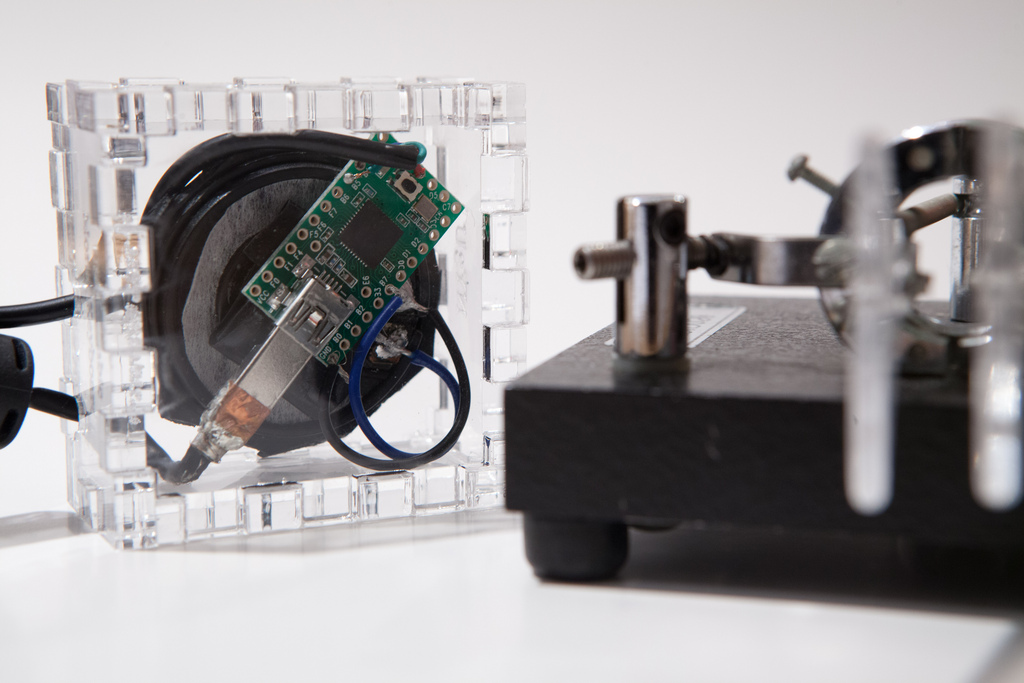

My Teensy 2.0 based USB keyboard that translates Morse code keyed in on the Bencher iambic paddle into key presses. Closeup on the Teensy board to show the pins used for the speaker and paddle connection.

Details on the project: www.nycresistor.com/2012/02/20/morse-code-keyboard/
