3D printed XY table

 Uncategorized  Add comments
Oct 012011

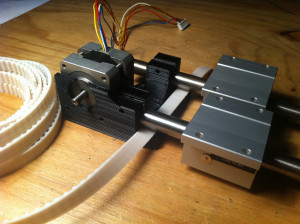

3D printed x-stage

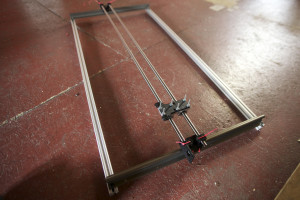

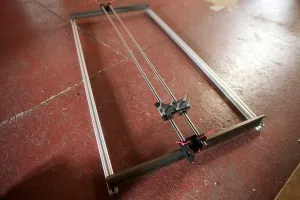

XY table dry fit

I’ve been inspired by the Lasersaur project to try building an XY table for laser cutting, Makerbotting, and light duty milling. The brackets, motor mounts and carriages are all 3D printed on NYCR’s Makerbot Thing-o-matic. Today I was able to put most of the pieces together for a dry fitting and found a few bugs — the carriages have too much play and will bind if pulled from the side, so the pull-pull belts will need to be moved to the inside of the rails, which will require all the carriages to be redesigned. The good news is that the printed teeth to engage the belt are well positioned to secure the belt under the rails without any additional hardware.
