HID ProxPro II wiring


HID ProxPro II wiring

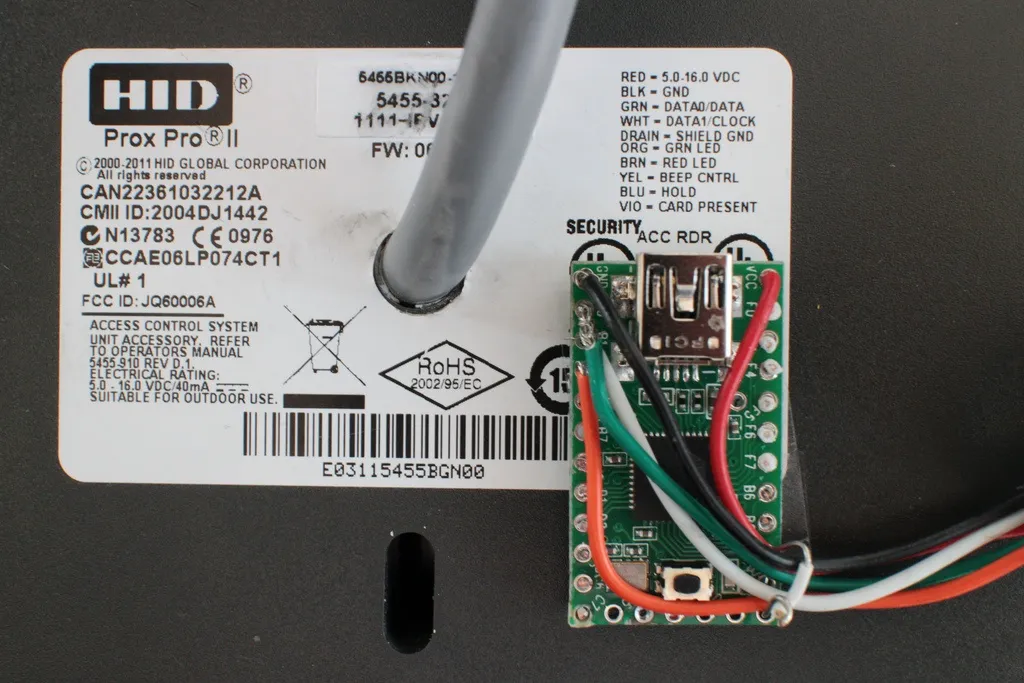

The HID ProxPro II has a handy wiring diagram on the back. I’ve used a Teensy 2.0 to decode the Wiegand output (separate return-to-idle lines for the 0 and 1 bits). More details: www.nycresistor.com/2012/12/27/rfid-multipass/
