LED Matrix Class Wrapup

By: Bre Pettis
May 28th, 2008

Led class

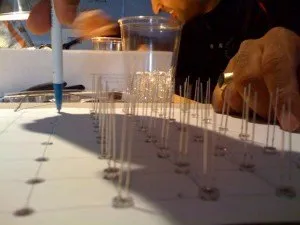

The LED Matrix class went great. We used ceiling tiles to poke into and embed LEDs into them. This worked great!

Led class

Zach made up some fantastic printouts for taping onto the tiles to get perfect graphs. Feel free to check out the DXF files or print out the pdfs. (pdfs coming soon)

If you’re interested in learning how to drive LEDs, make sure to come to next weeks class titled Driving LED Displays. – Class Link

2 comments
  • Jim

    Bre,
    Great class! It was a lot of fun and as in Zach’s Arduino classes I had a great time. I’m looking forward to next week and seeing what I can make this thing do. If all goes well I should have a nice bit of 8×8 wall art and a 4x4x4 cube in my near future.

    The RGB cylinder was most impressive and hope to be able to see more of it in the future.

    It was time well invested.

    Thank you,
    Jim

  • Inane

    hey Bre, do you know anyone that’s done DMX with Arduino? I’d love to buy a shield complete or at least get ahold of a PCB, and a know working design…
